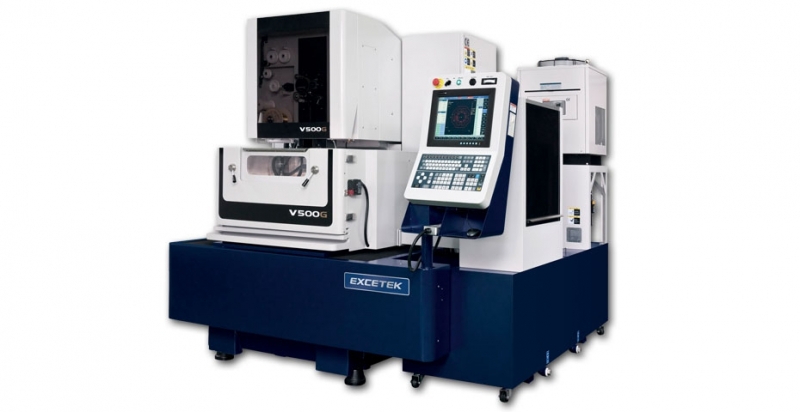

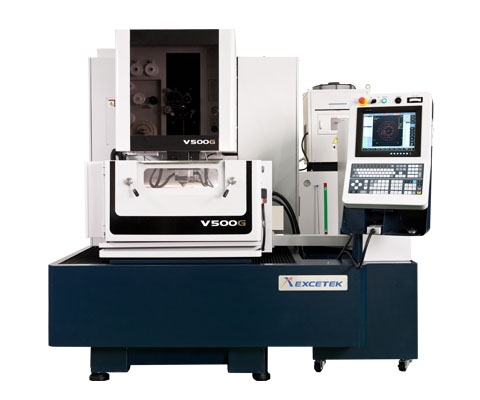

V500G
Termék leírása:
Mono bloc Meehanite cast elements designed using Finite Element Methods (FEM) provide exceptional damping properties and exceptional machining rigidity. To ensure thermal stability, rib location has been designed using Finite Element Analysis, assuring optimised structural rigidity.
To ensure thermal balance, rib location
is designed by Finite Element Analysis
(FEA) assuring an optimized rigid
structure.
•Water-cooled lower arm prevents thermal expansion caused by heat build-up, maintaining accuracy.
•Stainless steel worktable hardened to 50 HRc.
• High response AC servo motor for guaranteed accuracy.
• Extra wide machine base for stability.
• Rigid U and V truss design.
| Specifications | V500G |
|---|---|
| Maximum workpiece (mm) | 850 x 600 x 255 mm(33.5″ x 23.6″ x 10") |
| Max. Work piece Weight | 600kg(1323 lb) |
| Travel of X/Y axes | 500 x 300 mm(19.7″ x 11.8") |
| Travel of U/V axes | 120 x 120 mm(4.7"x 4.7") |
| Travel of Z axis | 260mm(10.2") |
| Wire diameter | 0.15~0.3mm(0.004"~0.012") |
| Number of axes controlled | 5 Axis AC Servo Motor |
| Max taper angle | ±26°/ 100mm(±26°/ 3.9") with wide diamond guide and nozzle |

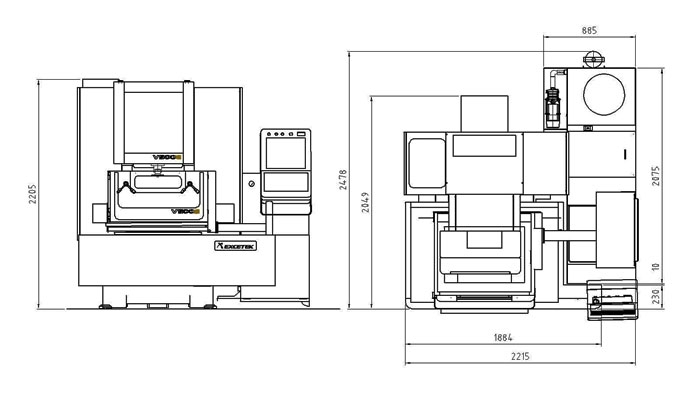

| Machine size | 2215 x 2480 x 2205 mm(87.2" x 97.6" x 86.8") |
| Machine Weight | 3200kg(7055 lb) |
| Water tank capacity | 750L |
| * The content of this catalogue is subject to be changed by the factory. | |
