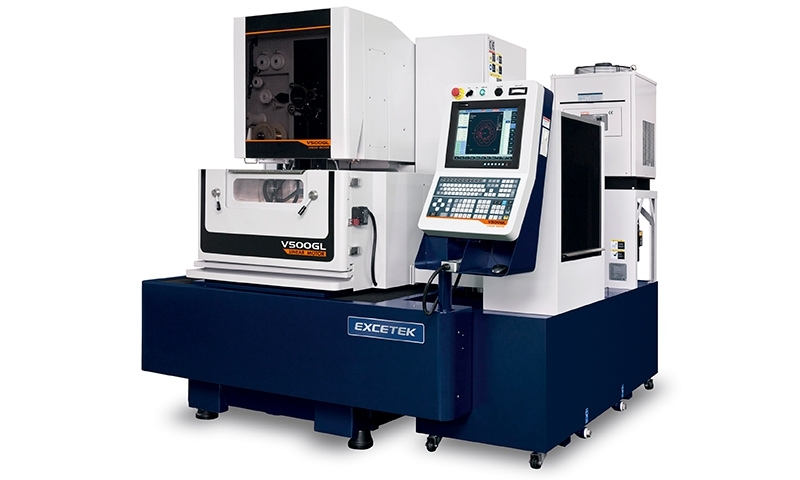

V500GL
V500GL
V500GL
V500GL
Termék leírása:
Specifications Submerged
Model V500GL
Maximum workpiece (mm) 850 x 600 x 255 mm 33.5" x 23.6" x 10"
Max workpiece weight 600 kg 1323 lb
Travel of X/Y axes 500 x 300 mm 19.7" x 11.8"
Travel of U/V axes 120 x 120 mm 4.7" x 4.7"
Travel of Z axis 260 mm 10.2"
Wire diameter 0.15~0.3 mm 0.004" ~ 0.012"
Number of axes controlled 5 Axis AC servo motor
Max taper angle ±26°/ 100 mm ±26°/ 3.9"
(with wide diamond guide and nozzle)
Machine size 2215 x 2480 x 2205 mm 87.2" x 97.6" x 86.8"
Machine weight 3200 kg 7055 lb
Water tank capacity 750 L
* The content of this catalogue is subject to be changed by the factory.
