Features:

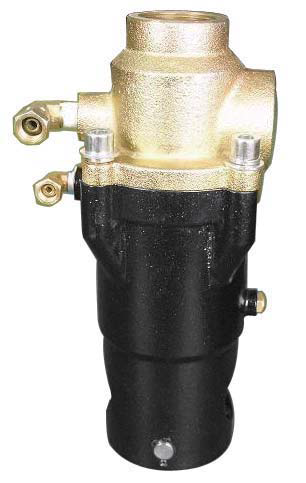

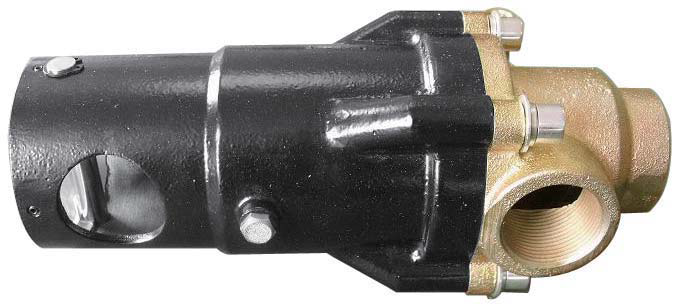

The PanBlastTM Kombi II NPT Remote Control Valve is a combination inlet and
outlet valve controlling both the compressed air supply and the exhaust air to and from
the blast pot.
The PanBlastTM Kombi II NPT Remote Control Valve is the latest development of
the Kombi Valve featuring a simplified design and utilizing modern materials and
processes.
Operation of the PanBlastTM Kombi II NPT Remote
Control Valve is via a pneumatic signal received from the
PanBlastTM AirStop Remote Control Handle when the lever is
depressed by the operator. The pneumatic signal drives a
single piston assembly that simultaneously opens the supply
air inlet port and clamps the exhaust hose closed which in
turn pressurizes the blast pot.
When the operator releases the AirStop Remote Control Handle the piston
assembly is retraced by a return spring, simultaneously closing the supply air inlet port
and releases the exhaust hose clamp and thus depressurizes the blast pot.
Updated simplified design with the exhaust hose
compression body now integrated with the main cylinder
body.
A redesigned upper rod guide, now moulded in Delrin®.
A new clear acrylic top cover allows inspection of the
exhaust hose closing action and condition of the exhaust
hose.
Powder coat finish on all external surfaces.
Anodized internal main cylinder.
Complete interchangeability with the Kombi I Valve and
other generic type valves, providing a simple 'plug out,
plug in' retrofit solution.
